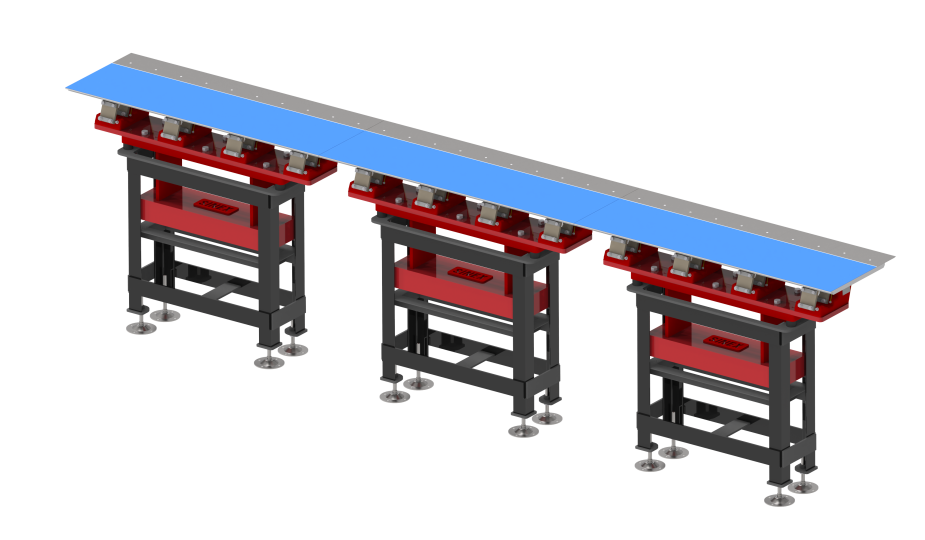

Vibrating Plates

The transfer of cold ends from the annealing lehr belt to the scalloped belt or accumulation belt is a critical stage in the glass production process. To address the challenges faced by glassmakers, SINEX has developed a patented cold-end transfer technology that delivers significant productivity gains. SINEX vibratory equipment delivers proven results in glassworks worldwide and easily integrates into your line between the cooling lehr, the scalloped belt, or the accumulation belt (less than 400 mm). They adapt to all line widths thanks to our modular design.

Key Strengths

Controlled vibration, no risk of falls
Particularly suitable for unstable and/or fragile products
Custom design
Continuously variable speed from 0 to 100% of the setpoint, controlled by manufacturer electronics

Technical Specifications

Single-direction vibrating plate for bottle transfer

Annealing Lehr Belt >> Scalloped Belt
Unstable or fragile products
For unstable products, the transfer to the scalloped belt is a high-risk stage due to potential contact between the cold ends.
The SINEX single-direction vibrating plate, with precise vibration control, allows controlled acceleration of the products, preventing contact between containers already on the scalloped belt and those arriving from the annealing lehr belt.

Double-direction vibrating plate for bottle transfer

Scalloped Belt >> Accumulation Belt >> Scalloped Belt

Always aiming to put our vibration expertise at the service of our customers, SINEX has developed a complementary solution to the single-direction vibrating plate. In the event of a problem on the packaging line, it allows the transfer of cold ends from the scalloped belt to the accumulation table without risk of falling.
When the packaging line is operational again, the double-direction vibrating plate reverses the transfer movement, unloading the accumulation belt onto the scalloped belt under the same safe conditions for your products.

Products in the Glass Industry: bottles, flasks, cold ends
