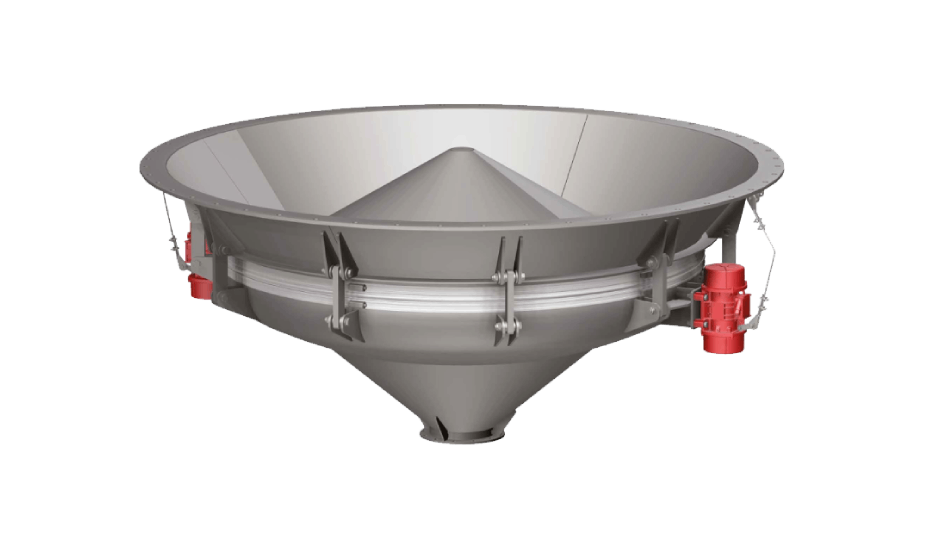

Vibrating Bin activator

Installed under a silo, the SINEX bin activator is a simple and reliable solution to facilitate the flow and extraction of products prone to arching. The anti-load cone transmits vibration to the product in contact, breaking the arching effect. The product flow, passing through an annular section, is freed from static load, thus preventing clogging in the product outlet cone.
fonds vibrants
Key Strengths


  • Custom design (performance, dimensions, interfaces)
  • High hygiene design for sensitive products
  • Sealed version available (product preservation, dust containment)
  • No moving parts in contact with the product
  • Easy maintenance and high availability
  • Variable flow rate depending on the chosen motorization
  • Suspended or floor-mounted installation
Technical Specifications

The SINEX bin activator can be made of steel or stainless steel depending on your application, and can also be equipped with wear-resistant coatings (HR steel, ceramic, etc.) for very abrasive products.The special peripheral seal ensures tightness for powdery products. As our equipment is custom-made, we take into account all aspects of your process and product in their design to offer you the optimal solution in terms of dimensions and components.

Examples of Products:

  • Food Industry: dried fruits, walnut kernels, livestock feed, milk powder, corn, coffee, sugar
  • Chemistry: caustic soda, sulfate, lime, calcium carbonate, phosphate, plastic grind, PVC, glass beads
  • Minerals: sand, coke, alum, talc, silicon, graphite, gypsum, chalk, lime
  • Metallurgy: metal oxides, alumina, coke
  • Glass Industry: cullet, composition, glass powder
